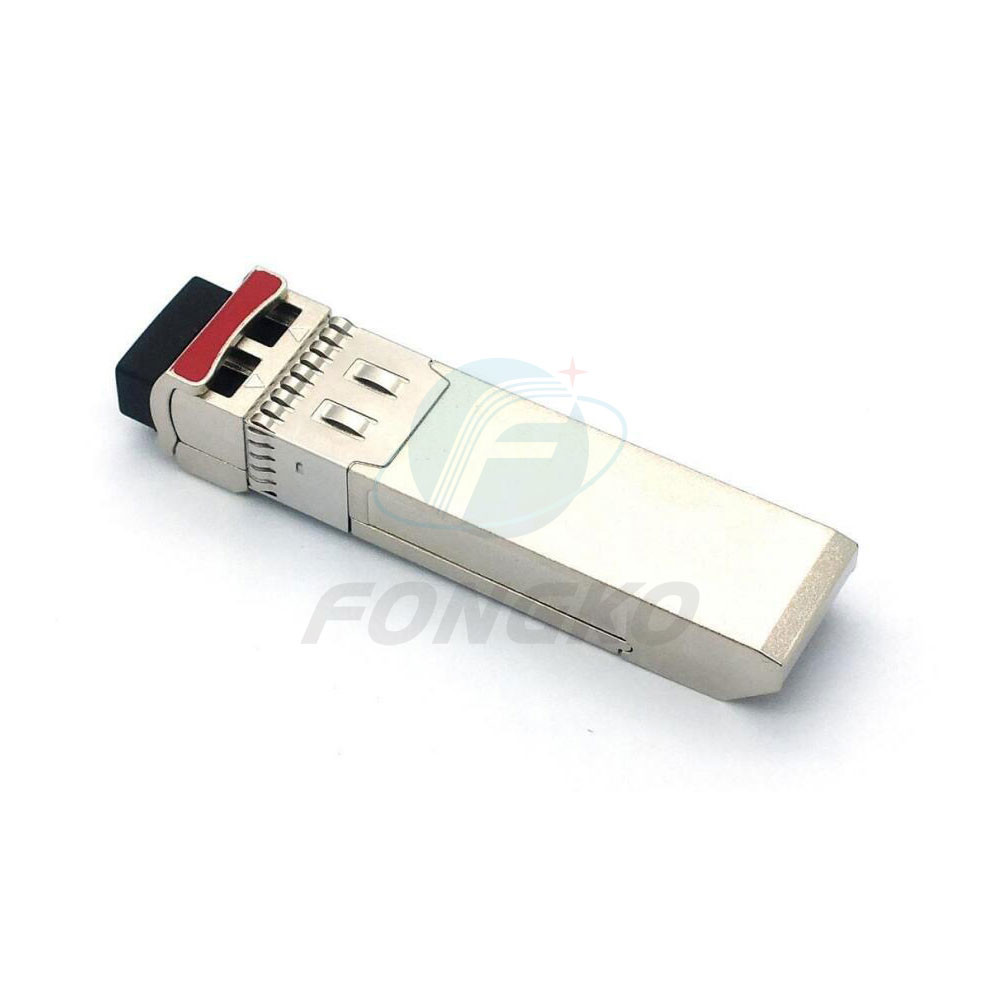

Industrial 10Gb/s SFP+ 40km SFP Optical Transceiver 1550nm

Name: Industrial 10Gbs SFP 40km SFP Optical Transceiver 1550nm
Brand: FONGKO
Price: 1 USD

Model Number : FKSFP-003

Place of Origin : China

Brand Name : FONGKO

Price : Negotiatable

MOQ : 1

Use : FTTH

Network : other

Product name : SFP Optical Transceiver

Condition : New

Keywords : RoHS Compliant 10Gb/s SFP+ 1550nm 40km Optical Transceiver

Low power consumption : < 1.2W

Operating case temperature : Commerical:0 to 70 °C Industrial:-40 to 85 °C

Contact Now

Product Features

Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled 1550nm EML transmitter, PIN photo-detector
Applicable for 40km SMF connection
Low power consumption, < 1.2W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
Electrical interface compliant to SFF-8431,SFF-8432
Operating case temperature:

Commerical: 0 to 70 °C
Industrial: -40 to 85 °C

Applications

10GBASE-ER/EW at 10.3125Gbps
OTN G.709 OTU1e/2/2e
4x, 8x and 10x 10G Fiber Channel
Other optical links

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit	Note
Supply Voltage	Vcc	-0.5	4.0	V
Storage Temperature	TS	-40	85	°C
Relative Humidity	RH	0	85	%
RX Damage Threshold	RxDamage	5		dBm

General Operating Characteristics
Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Data Rate	DR	9.953	10.3125	11.3	Gb/s
Supply Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc5			360	mA
Operating Case Temp.	Tc	0		70	°C
Operating Case Temp.	TI	-40		85	°C

Electrical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =--5 to 80 ℃,VCC =3.13 to 3.47 V)
Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Differential data input swing	VINPP	120		850	mVpp	1
Transmit Disable Voltage	VD	VCC-0.8		Vcc	V
Transmit Enable Voltage	VEN	0		0.8	V
Input differential impedance	Rin		100		Ω
Receiver
Differential data output swing	Vout,pp	300		850	mVpp	2
Output rise time and fall time	Tr, Tf	28			Ps	3
LOS asserted	VLOS_F	VCC-0.8		Vcc	V	4
LOS de-asserted	VLOS_N	0		0.8	V	4
